When Kingsley Beverages decided to install a new can line they contracted Stolle, a global supplier of can manufacturing equipment and plants for a turnkey project in South Africa. In turn, Stolle subcontracted AllWater Technologies to conceptualise, design, create, oversee, and manage the build of the entire water treatment system.

The Challenge

The water treatment system required a reliable system to produce water of <10μS/cm for production and a wastewater treatment solution to consistently achieve local discharge consent limits, including low levels of Fluoride.

Requirements:

RO water quality: <10 μS/cm
RO serviceable water rate: 8 cubic metres per hour
Effluent discharge rate: 10 cubic metres per hour

Infrastructure

AllWater coordinated closely with Stolle to design and build the infrastructure, including providing layout design. load bearing information and suggestions for area containment.
The layout design included a dedicated tank farm with access gantry to reaction tank area and filter press, pure water generation area with clear delineation from wastewater treatment area, ergonomic flow path reducing the need for pumping wherever possible and ease of forklift access to powder reagent make-up system.

Reverse Osmosis

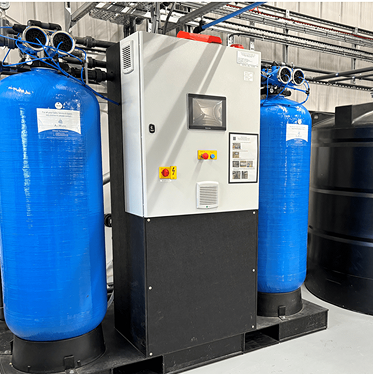

To enhance water quality and increase overall system recovery, it was decided to operate two RO units in series. Twin pass RO system designed with 2 identical plants, either of which can be operated in the ‘lead’ or ‘lag’ position, or independently, offering a high-level of flexibility and operational security.
Operating the units in series ensured exceptionally good water quality and increased the overall recovery level of the system, providing maximum output and efficiency.

Wastewater Treatment

Two reception tank system, able to accommodate day-to-day rinse water, periodic discharge of higher strength concentrates and also emergency holding capacity.
Two stages of reaction tanks and settlers, all joined via gravity, in order to achieve low Fluoride discharge consent limit.
Continuous outfall monitoring including auto-divert and retreatment for out-of-specification effluent.

The Chemistry

Stage 1: Lime Dosing

Lime is dosed into the effluent stream to facilitate the precipitation of Calcium Fluoride. This process effectively reduces Fluoride levels to a reasonably low level and neutralises the acidic nature of the effluent.
Lime dosing is a cost-effective process that eliminates a large amount of Fluoride from the water.

Stage 2: Fluoride Precipitation

A specific Fluoride removal chemistry is introduced into the effluent within the reaction tank system. This proprietary targets Fluoride specifically, facilitating its removal from the effluent stream.
The addition of Fluoride removal chemistry achieves the discharge limit of <5 mg/litre Fluoride.

Further Support

An installation manager from AllWater supervised on-site activities, ensuring adherence to design specifications and quality standards.
Commissioning engineers were dispatched to the site to commission the unit, verifying that all systems met the required performance standards.
Comprehensive training was provided to the local personnel, covering all aspects of the system’s operation, maintenance, and troubleshooting.
Continuous remote support is offered to address any issues that may arise and to assist with system optimisation.

Conclusion

The successful completion of the Kingsley can factory water treatment system highlights AllWater Technologies’ capability to deliver effective turnkey solutions. By meeting stringent water quality and effluent discharge requirements through innovative design and advanced chemistry, we ensured efficient and compliant operations. Our ongoing support and thorough training empowered the local team to maintain optimal performance. This project demonstrates our commitment to excellence and our ability to handle complex water treatment challenges for clients worldwide.
